ECUMASTER

CAN modules

CAN bus modules for GPS, wheel speed, thermal imaging, lambda, EGT, USB and switch input, plus the CAN I/O Module and CAN Switch Board.

Authorised reseller

ECUMASTER CAN I/O Module

CAN I/O Module Beta

CAN I/O Module packs up to eight switch inputs and eight analogue signals onto the CAN bus in a compact housing.

ECUMASTER lists this product as beta.

Switch inputs
8 switch inputs (switched to ground)
Analog inputs
8 analog inputs / rotary switch (0-5V, 10bits)
Outputs
2 high side outputs (7A), 2 low side outputs (5A)
Power supply
6-22V
+5V output
For powering rotary switches, sensors and potentiometers
Firmware upgrade
Over the CAN bus
Communication
CAN 2.0A/B
Bitrates
125, 250, 500, 1000 kbps
Product details
Configuration
ECUMASTER Light Client

It also carries four outputs, split two high-side and two low-side, that can be triggered by a CAN bus message, and is built to work with EMU and PMU as well as other devices with configurable CAN inputs.

Request this product
ECUMASTER GPS TO CAN V2

GPS TO CAN V2

GPS TO CAN V2 is ECUMASTER's high-accuracy positioning module, reporting location over the CAN bus at a 25 Hz update rate.

Update rate
25 Hz
Navigation systems
GPS, GLONASS, Galileo, and BeiDou (used simultaneously)
Antenna
External, active antenna with a magnetic base included
Motion sensing
Built-in 3-axis accelerometer and gyroscope; delivers speed, position, heading, altitude, accelerations, and angular velocities
Output
All GPS data transmitted via CAN bus
Compatible use
Intended to work with the ADU display/logger for real-time lap timing, predictive timing, and post-session data analysis with track map visualization
Product details

It draws on four navigation constellations at once, GPS, GLONASS, Galileo and BeiDou, and ships with an external active antenna on a magnetic base. A built-in three-axis accelerometer and gyroscope add speed, heading, altitude and acceleration data alongside position, all sent over CAN.

ECUMASTER designed it to pair with the ADU display/logger for real-time and predictive lap timing plus post-session analysis with a track map.

Versions

  • GPS to CAN Autosport (Autosport-connector version)
Request this product
ECUMASTER WHEEL SPEED TO CAN

WHEEL SPEED TO CAN

Wheel Speed to CAN reads a car's existing wheel-speed sensors and puts the data on the CAN bus without touching the ABS signal.

Key features
Supports up to 4 magnetoresistive / VR / Hall sensors; CAN 2.0A/B (125, 250, 500, 1000 kbps), customizable messages and data format; free firmware upgrades; configurable via CAN BUS
Product details

ECUMASTER notes that tapping directly into the active magnetoresistive sensors used by most modern ABS systems risks introducing faults, so this module reads the signal without disrupting it, passing wheel-speed data to dashboards, loggers and ECUs while leaving the anti-lock system fully working. It can also serve as an expansion module where an ECU lacks enough inputs to wire all four sensors directly.

Request this product
ECUMASTER CAN THERMAL CAMERA

CAN THERMAL CAMERA

ECUMASTER's CAN Thermal Camera reads tyre or brake-disc temperature without contact and reports it over the CAN bus.

Accuracy
Error less than 3°C
Measurement points
Up to 16 points per tyre
Temperature range — tyre sensor
0° to 255°C
Temperature range — brake disc version
Up to 950°C
Data frequency
Up to 50 Hz over CAN bus
CAN configuration
Flexible, user configurable CAN stream; fully accessible configuration allows multiple sensors per car without message ID clashes
Product details

ECUMASTER states the sensor is accurate to within 3°C and reads up to sixteen points across a tyre, covering 0-255°C for the tyre version or up to 950°C for the brake-disc version, streamed at up to 50 Hz over a configurable CAN message so several units can share a car without ID clashes.

Versions

  • Tyre temperature sensor (0-255°C)
  • Brake disc version (up to 950°C)
Request this product
ECUMASTER LAMBDA TO CAN

LAMBDA TO CAN

Lambda to CAN is a compact CAN bus controller for the Bosch LSU 4.9 sensor, converting its wideband oxygen reading into lambda and AFR values on the bus.

Sensor support
Bosch LSU 4.9 wideband oxygen sensor
Components
Automotive-grade components for high reliability
Enclosure
Compact, IP67-rated
Configuration
Ecumaster Light Client software
Communication
CAN 2.0A/B (supports multiple units on a single bus)
Operating voltage
9-16 V
Peak current draw
Up to 3 A (during sensor warm-up)
Product details

ECUMASTER built it around a dedicated Bosch chip paired with an automotive-grade microcontroller for accurate readings in demanding motorsport conditions.

Request this product
ECUMASTER USB TO CAN

USB TO CAN

USB to CAN is ECUMASTER's USB interface for linking a computer to a CAN bus network, mainly to talk to a PMU.

Key features
Supports CAN 2.0A and CAN 2.0B standards; LED status diode for fast diagnostic; 120 Ohm terminator that can be switched on or off (no need for external terminators)
Product details

A galvanically isolated version is also offered.

Versions

  • Standard version
  • Galvanically isolated version
Request this product
ECUMASTER EGT TO CAN

EGT TO CAN

EGT to CAN reads up to eight exhaust-gas-temperature probes and reports the readings over the CAN bus.

Probe channels
Up to 8 EGT probes (K-Type thermocouples)
Cold junction compensation
Yes
Input range
0-1250°C
CAN compatibility
CAN 2.0 compatible
Configuration
Configurable CAN bitrate, byte order (Intel, Motorola), message IDs
PC connection
USB port; client software for configuration and temperature monitoring
Product details

It takes input from K-type thermocouples, converts each reading into a temperature figure and is set up over USB with Windows-based software; ECUMASTER notes matching EGT probes are sold separately. Paired with an EMU engine management unit, the readings can be used to trim fuelling cylinder by cylinder as a safeguard against engine damage.

Request this product

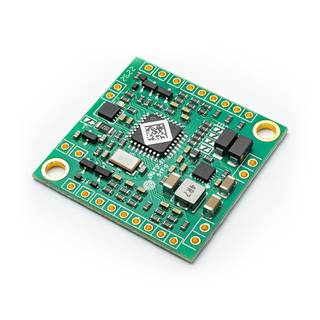

ECUMASTER CAN SWITCH BOARD V3

CAN SWITCH BOARD V3

CAN Switch Board is a small board built mainly for wiring custom steering-wheel panels of buttons and rotary switches over CAN.

Communication
CAN BUS 2.0B, 500 or 1000 kbps user selectable; different CAN ID and CAN frame structures can be selected
Size
Only 25 x 25 mm
Switch inputs
8 switch inputs (switched to ground)
Analog inputs
8 analog inputs / rotary switch inputs, 0-5V, 10bits
Low side outputs
4 low side outputs (0.5A, resistive and inductive loads)
Power supply
6-22V
+5V output
For powering rotary switches, sensors and potentiometers
Firmware upgrade
Over the CAN bus
Product details

Besides carrying up to eight switch states and eight analogue signals onto the bus, it has four built-in low-side outputs triggered by a CAN message, and is built for use alongside EMU BLACK and PMU, as well as other CAN-configurable devices. A stand-alone version is also sold as the CAN I/O Module.

Versions

  • CAN switch board V1 (previous version)
  • CAN switch board V3 (current)
Request this product

Product information and photos from ECUMASTER, checked on 27 September 2026. Descriptions written by Scuderia General Trading.
