Engine control units

ECUMASTER built the module specifically for demanding common-rail diesel injection, an area few stand-alone engine controllers cover well; it works alongside EMU PRO rather than as its own controller.

ECUMASTER states the pairing keeps fuel pressure stable under high loads, supports oversized injectors and gives a smoother launch with less smoke, covering engines up to eight cylinders.

VVT

Up to 4 VVT support, auto-calibration

CAN/LIN

2 x CAN 2.0A/B, 1 x LIN bus

Knock sensors

2 x knock sensors

Logging

Logging to external USB memory; up to 500 Hz data-logging

EGT inputs

8 [4] x EGT inputs (or high-precision analog inputs)

I/O total

Total of 46 [31] outputs and 30 [24] inputs (8-version in brackets)

Custom logic

Custom user functions, numbers, tables, and outputs

Enclosure

Water resistant IP65 enclosure, bespoke CNC machined aluminum

Diagnostics

On-line parameters analysis displayed on the graph log

Dimensions & weight — EMU PRO-8

165 x 95 x 38 mm, 464 g

Dimensions & weight — EMU PRO-16

197 x 95 x 38 mm, 561 g

Two versions are offered: EMU PRO-16 for builds needing a high input/output count, and EMU PRO-8 for smaller engines of up to eight cylinders. Fitting a GDI Driver lets either version run direct-injection engines.

Versions

• EMU PRO-8 (up to 8 cylinders)
• EMU PRO-16 (higher I/O count)
• Accessory: preterminated labeled wiring harness for EMU PRO

Enclosure

Waterproof case IP65

EMU PRO strategy

Control of pressure for up to 2 high pressure fuel lines; adjustable injection timing; control of up to 16 injectors (8 direct via GDI Driver + 8 port injectors direct on EMU PRO); configurable fuel injection split between port and direct rails; support for multiple fuel pump cam types; support for multiple high pressure pumps; variable rail pressure target

It steps injector voltage up for fast, precise response and can run two high-pressure pump valves, with CAN bus diagnostics for live monitoring and logging.

ECUMASTER supplies ready base maps for common applications, including the VAG EA888 Gen 3, and states more will be added.

Ignition outputs

6 outputs 7A (15A peak) (passive & active coils supported)

Aux outputs

6 protected outputs 5A, low side

Other outputs

Full bridge up to 7A, can be used as separate outputs or 2 H-Bridges

WBO heater

Protected low side up to 5A

Communication

Serial, CAN BUS 2.0B

Analog inputs

9 inputs, resolution 10Bits, 0-5V (protected)

EGT inputs

2 for K-Type thermocouple

Knock sensor

2 inputs

Oxygen sensor

LSU 4.2, LSU 4.9 or Narrow band

Trigger inputs

3 (primary, 2 cams) Hall/VR software selectable

VSS

1 (Hall / VR)

Flex Fuel Sensor

Yes

Switch inputs

3 inputs, switched to ground

Temperature sensors

IAT, CLT, Oil temperature, AC evap temperature, Fuel temperature*, Cylinder head temperature*, Ambient temperature*, Pre and Post IC temperature*, Power steering temperature*, Brake fluid temperature*, Differential oil temperature*, Gearbox oil temperature* (* added in V3 firmware)

Pressure sensor

MAP, Oil pressure, Fuel pressure (user defined characteristic), AC pressure sensor, Back pressure, Coolant pressure*, Crankcase pressure*, Differential pressure*, Nitrous pressure*, Pre throttle boost pressure*, Wastegate dome pressure*

Oxygen sensor (sensing)

LSU 4.2 or 4.9 (built in controller), Narrow band, external WBO controllers, external WBO controllers via analog inputs*, external WBO controllers over CAN Bus*

Speed

Vehicle speed sensor (VR/HALL), Gear sensor (sensor, calculated), Over CAN bus*

Injectors

Up to 8 HiZ injectors (sequential)

Injection angle control

0-720 deg, start or end of injections

Fueling strategies

VE based speed density, Alpha N, Alpha N with ethanol fuel composition and fuel pressure correction*

VE table

2 tables 16x20 (Load x RPM), resolution of 0.1%

Individual cylinder trim

Yes

Staged injection

Yes

Ignition angle table

2 tables 16x20 (Load x RPM), resolution of 0.5 Deg

Supported triggers

N-1, N-2, N-3, N+1, Multitooth, CAM toothed wheel with 1 or 2 missing teeth, CAM toothed wheel with additional tooth, Subaru triggers, Nissan trigger, Lotus Elise, Audi trigger, Renault Clio Williams/Alpine, Colt 1.5CZ, Wrangler, TFI, Rover, trigger wizard for popular engines*

Knock sensing channels

2, resonant frequency range 1-20kHz, 3rd order AAF

Idle control

PWM solenoids (2,3 wires), electronic throttle, stepper motors (bi and unipolar), ignition cut, fuel cut, cycling idle*

Boost control

2x3D boost targets, 1x3D duty cycle feedback*; open/closed loop (PID based), PWM, EWG, overboost protection, CO2*

Drive by wire

Modelled with PID controller and automatic calibration feature; all throttles with DC motor <6.5A, high current ITB via external Dual H-Bridge over CAN*; wizard for 28 popular electronic throttles; BLIP and ALS support

Traction control

Driven/undriven axle speed diff, Delta RPM with gear compensation; torque reduction via spark cut, fuel cut, ignition retard; 10-position rotary switch sensitivity

Variable valve timing

VVTi, MiVec, VANOS, Double Vanos; 2 camshafts; PID based closed loop, CAM angle target tables 12x12

Flex fuel

Ethanol content measurement with automatic PW compensation built into fuel model; fuel temperature measurement and PW correction; table blending for VE, IGN, Lambda/AFR, Boost, Cranking fuel, ASE, Warmup, CAM1/CAM2*

Sport features

ALS (2 independent settings, DBW support, engine protections*); per-gear shift light; launch control; gear cut (open loop, DBW blip); paddle shift; pit limiter; rolling anti-lag; nitrous (2 stages*, dry/wet*, progressive*, NFR*); trans brake (bump/creep*); rev matching

Engine protection

Fail-safe values for critical sensors; dashboard indication of failures; over-temperature (oil/coolant) protection with RPM limit; low oil pressure protection with shut-off; fuel pressure protection; high exhaust temperature alarm; overboost protection (fuel cut); lambda guard (fuel/ignition/boost correction*)

CAN bus

2.0B 125/250/500/1000 kbps; supported CAN dashes: ECUMASTER, Motec M800 Set 1, Haltech E8 E11v2, Pectel SQ 6, AEM, Haltech IC7*; supported OEM CAN streams: BMW E46, Citroen C2, Mazda RX8, Ford ST, Polaris RZR, Mini Cooper R53, Fiat 500, Renault Clio, Lotus, Ford Fiesta, EVO X (AYC support)

OBD II

VIN, MIL status, number of DTCs, fuel system status, CLT, short term fuel trim, fuel pressure, intake manifold pressure, RPM, vehicle speed, timing advance, IAT, throttle position, oxygen sensor presence/voltage/fuel trim, engine runtime, oxygen sensor equivalence ratio [λ], battery voltage, fuel equivalence ratio target [λ], ethanol content

Other

Unused injection outputs usable as AUX; output functions include fuel pump, coolant fan, parametric outputs, nitrous control, PWM 3D table output, AC clutch, main relay, speedometer, tachometer, power steering (Volvo EHPS over CAN), electric water pump control, BMW EKP fuel pump control; password protection (full data encryption); timers; serial dashboard support (AIM, RaceTechnology); autotune; built-in trigger scope; logging (real time to PC, external loggers serial/CAN)

It suits circuit and road cars, bikes, boats and static engine installations, running fuelling, ignition and auxiliary systems on one to twelve-cylinder engines, including drive-by-wire throttle and variable valve timing.

It can fire up to six passive or twelve smart coils directly with no external amplifier, and ECUMASTER offers free firmware upgrades that add capability over time.

The V3 software update runs on every EMU BLACK unit ever made, adding broader user-configurable CAN handling, added logic/behaviour functions, improved boost-control tuning drawn from EMU PRO, a closed-loop sequential-gearbox strategy, higher logging rates, a dark mode and a built-in help system in seven languages, among other additions.

ECUMASTER builds the unit to IPC-S-815A standards on an automated line that includes optical inspection and a burn-in test, housed in a coated, sealed enclosure rated for continuous duty from -40°C to +105°C.

Versions

• EMU Black V2 software
• EMU Black V3 software (major update, works with every EMU Black ever produced)

Communication

USB (with PC client software), serial or CAN

Injector outputs

6 protected outputs 5A, low side

Ignition outputs

6 outputs 7A (15A peak) (passive & active coils supported)

Aux outputs

6 protected outputs 5A, low side

Stepper outputs

Full bridge up to 0.8A, can be used as separate outputs

WBO heater

Protected low side up to 5A

+5V output

1

CAN BUS

Yes, with additional module

Analog inputs

7, 10 bits, 0-5V; 4 additional analog inputs with CAN module

EGT inputs

2 for K-Type thermocouple

Knock sensor

2

Oxygen sensor

LSU 4.2 or Narrow band

Trigger inputs

3 (primary, 2 cams) Hall / VR software selectable

VSS

1 (Hall / VR)

Flex Fuel

Using CAM#2 or VSS

Temperature sensors

IAT, CLT, Oil temperature (user defined characteristic), AC evap temperature

Pressure sensor

MAP, Oil pressure, Fuel pressure (user defined characteristic), AC pressure sensor

Injectors

Up to 6 Hi Z injectors (sequential)

Fueling strategies

VE based speed density, Alpha N

VE table

2 tables 16x20 (Load x RPM), resolution of 0.1%

Ignition angle table

2 tables 16x20 (Load x RPM), resolution of 0.5 Deg

Supported triggers

N-1, N-2, N-3, N+1, Multitooth, Subaru triggers, Nissan trigger, Lotus Elise, Audi trigger, Renault Clio Williams/Alpine, Colt 1.5CZ

Boost control

2 sets 16x20 (TPS vs RPM); open/closed loop (PID based); corrections for Gear, VSS, IAT, EGT

Drive by wire

External module required; advanced 3D PID + static friction compensation; all throttles with DC motor <6A; wizard for 28 popular electronic throttles; BLIP and ALS support

Traction control

Delta RPM, gear compensation; torque reduction via spark cut using 3D table (16x20); 10-position rotary switch

Variable valve timing

VVTi, MiVec, VANOS, Double Vanos; 2 camshafts; PID based closed loop, CAM angle target tables 12x12

Flex fuel

Ethanol content and fuel temperature measurement; table blending for VE, IGN, Lambda/AFR, Boost, Cranking fuel, ASE, Warmup

Sport features

2 independent ALS settings (DBW support); per-gear shift light; launch control; gear cut (open loop, DBW blip, switch/load cell/CAN source); pit limiter; rolling anti-lag

Engine protection

Fail-safe values for critical sensors; dashboard indication of failures; over-temperature protection with RPM limit; low oil pressure protection with shut-off; fuel pressure protection; high exhaust temperature alarm

CAN bus (external module required)

2.0A 125/250/500/1000 kBps, 11/29 bits; supported CAN dashes (application dependent): ECUMASTER, Motec M800 Set 1, Haltech E8 E11v2, Pectel SQ 6, AEM; supported OEM CAN streams: BMW E46, Citroen C2, Mazda RX8, Ford ST, Polaris RZR, Mini Cooper R53, Fiat 500, Renault Clio, Lotus, Ford Fiesta, Ford ST

Other

Unused injection outputs usable as AUX; unused ignition outputs usable as AUX for some functions; output functions: fuel pump, coolant fan, parametric outputs, nitrous control, PWM 3D table output, AC clutch, main relay, speedometer, tachometer; password protection (2 levels); timers; serial dashboard support (AIM, RaceTechnology); autotune; built-in trigger scope; logging (real time to PC, external loggers serial/CAN)

Changes from the original EMU include upgraded ignition outputs able to drive more than one active coil per channel, a separate 5V regulator for sensors, better-protected stepper outputs, a galvanically isolated USB port and a smaller CNC-machined enclosure.

EMU and EMU CLASSIC share the same firmware and client software. It manages fuelling, ignition and auxiliary systems on one to twelve-cylinder engines, including drive-by-wire with an external module and variable valve timing, and ECUMASTER says its adaptable trigger decoding can support crank patterns not yet released.

Built-in features include a wideband lambda input wired directly to a Bosch LSU 4.2 sensor, an onboard MAP sensor, two EGT probe inputs and an ethanol-sensing port for Flex Fuel, alongside software such as switchable maps, launch control, adaptive lambda tuning and wheel-slip management.

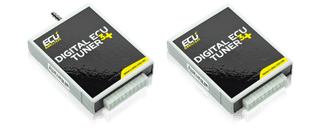

For most applications it allows the factory airflow meter to be removed, drives up to four injectors in batch-fire mode and adjusts ignition timing through 16x16 tables, with parametric outputs configurable for boost control, nitrous activation or water/methanol injection.

In its "Fuel Implant" mode the DET3 behaves more like a stand-alone ECU, working out fuelling from RPM, intake air and coolant temperature and throttle position, plus oxygen-sensor feedback where fitted.

Versions

• DET3 (standard piggyback mode)
• DET3 FI (Fuel Implant standalone fueling mode)
